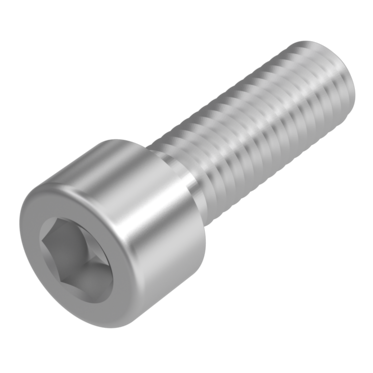

DIN912 (Cylinder Head Screw Hex Drive)
Nominal Size
Tapping Drill Size
Head Diameter
Head Height
M1.6
1.25
3
1.6
M2
1.6
3
2
M2.5
2.05
4
2.5
M3
2.5
5.5
3
M4
3.3
7
4
M5
4.2
8.5
5
M6
5
10
6
M8
6.75
13
8
M10
8.5
16
10
